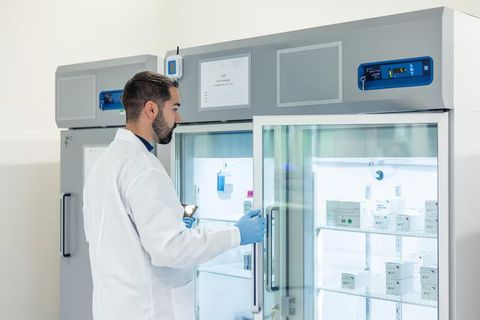

A humidity chamber is an enclosed testing environment designed to control moisture and temperature around a sample, product, material, or component.
Humidity Chamber Basics help explain how controlled moisture and temperature conditions are created and why they matter in environmental testing, research, manufacturing, storage studies, and product development.
Unlike ordinary rooms, where temperature and humidity change naturally, a humidity chamber is designed to maintain selected environmental conditions for a defined period. Sensors continuously measure conditions inside the chamber, while heating, cooling, and humidification systems adjust the environment as needed.
How Moisture and Temperature Control Works
Humidity is commonly expressed as relative humidity, or RH, which describes the amount of water vapor in the air compared with the maximum amount the air can hold at a particular temperature. Temperature and humidity are closely connected, so changing one can affect the other.
A typical chamber may contain several key components:
- Temperature sensors to measure air temperature
- Humidity sensors to monitor relative humidity
- Heating elements for raising temperature
- Cooling systems for lowering temperature
- Humidification systems for adding moisture
- Air circulation equipment for distributing conditions evenly
- A control system for maintaining selected settings
- Data recording functions for monitoring test conditions
The combination of these components allows users to create controlled environmental conditions rather than relying on naturally changing surroundings.
Where Humidity Chambers Are Used
Humidity chambers are used across many fields. Electronics and electrical components may be exposed to humid conditions to study how moisture affects materials and connections. Packaging and materials can be examined for changes caused by prolonged exposure to temperature and humidity.
Other applications include environmental research, material studies, pharmaceutical and laboratory research, agricultural experiments, and testing related to storage and transportation conditions. The exact chamber settings depend on the material being examined and the purpose of the test.
Importance
Why Controlled Humidity Matters
Moisture can influence physical, chemical, and electrical characteristics. Some materials absorb water from the surrounding air, while others may experience corrosion, swelling, cracking, discoloration, or changes in electrical behavior when exposed to particular environmental conditions.
A humidity chamber provides a controlled way to examine these effects. Instead of waiting for naturally occurring environmental changes, researchers can expose samples to defined temperature and humidity conditions and monitor what happens over time.
This is particularly useful when comparing materials or studying how a product behaves under repeated or prolonged environmental exposure.
Supporting Consistent Testing
Consistency is an important part of environmental testing. If temperature and humidity fluctuate significantly during a test, it may become difficult to determine whether observed changes are related to the intended test condition or to unrelated environmental variation.
Controlled chambers help create repeatable conditions. International guidance such as IEC 60068-3-6 addresses methods for confirming the performance of temperature and humidity chambers, including regular chamber performance monitoring.
Common Environmental Conditions
Humidity chambers can be configured for different combinations of temperature and relative humidity. The appropriate range depends on the test objective, chamber design, and applicable testing procedure.
| Condition | Typical Purpose |
|---|---|
| Low humidity | Studying behavior under dry conditions |
| Moderate humidity | Simulating ordinary indoor environments |
| High humidity | Examining moisture-related effects |
| Constant temperature and humidity | Long-duration environmental exposure |
| Cyclic temperature and humidity | Studying repeated environmental changes |
| Condensation conditions | Examining effects of moisture forming on surfaces |
These categories are general descriptions rather than universal test settings. Specific procedures may define particular temperature, humidity, exposure periods, and measurement requirements.
Recent Updates
Changes in Environmental Testing Standards
Recent developments in environmental testing have included updates to procedures for damp heat and humidity-related testing. IEC 60068-2-30:2025, for example, provides a revised procedure for cyclic damp heat testing involving high humidity and changing temperatures. The updated edition includes revisions related to chamber requirements, temperature tolerances, conditioning limits, intermediate measurements, and test reporting.
Another relevant development is the continued refinement of guidance surrounding humidity testing. IEC 60068-3-4:2023 addresses damp heat testing principles and the operation of climatic test chambers, including revisions concerning water quality, chamber cleaning, and humidification methods.
Greater Attention to Measurement Accuracy
From 2024 through 2026, environmental testing has continued moving toward more controlled and measurable test conditions. Research facilities such as NIST use humidity generators and temperature-controlled chambers for studying humidity measurement, sensor response, and material moisture behavior.
This reflects a broader emphasis on accurate measurement, documented test conditions, and repeatable environmental exposure. Modern testing increasingly combines chamber controls with sensors, data recording, and software-based monitoring.
Dynamic Environmental Testing
Another developing area is the use of changing rather than purely constant environmental conditions. Research into HVAC equipment, accelerated weathering, materials, and other applications increasingly involves controlled changes in temperature and humidity that represent more complex real-world environments. NIST research has also examined environmental chambers capable of supporting dynamic conditions for equipment performance studies.
Tools and Resources
Humidity and Temperature Measuring Tools
A hygrometer measures humidity, while a thermometer or temperature sensor measures temperature. Some modern instruments combine both measurements in one device. Data loggers can record environmental readings over time, allowing users to review changes throughout an experiment.
Dew-point calculators can also help users understand the relationship between temperature, moisture content, and condensation. These calculations can be useful when planning tests where surface moisture is an important factor.
Standards and Technical References
International standards can provide structured guidance for environmental testing. The IEC 60068 series includes documents covering damp heat, temperature and humidity chamber performance, measurement uncertainty, and related environmental testing methods. IEC 60068-3-11, for example, explains approaches for estimating uncertainty in temperature and humidity conditions within climatic test chambers.
Laboratory teams may also use equipment manuals, test templates, calibration records, environmental monitoring software, and standardized reporting forms. These resources help document the selected conditions, exposure duration, measured values, and observations.
What to Record During a Test
Useful records may include:
- Target temperature
- Target relative humidity
- Actual measured temperature
- Actual measured humidity
- Test duration
- Sample identification
- Test start and end conditions
- Any visible changes in the sample
- Calibration or verification information
Keeping these details together helps make environmental test results easier to understand and compare.
FAQs
What is a Humidity Chamber used for?
A Humidity Chamber is used to create controlled temperature and moisture conditions around a sample or component. It can help researchers study how materials, electronics, packaging, and other products respond to environmental exposure.
How does moisture and temperature control work in a humidity chamber?
Sensors measure temperature and humidity inside the chamber. A control system then adjusts heating, cooling, humidification, or air circulation to maintain the selected environmental conditions.
Why is a Humidity Chamber important for environmental testing?
A Humidity Chamber helps reduce uncontrolled environmental variation. This allows samples to be exposed to defined conditions and makes it easier to observe moisture- and temperature-related changes.
What is relative humidity?
Relative humidity is a measure of how much water vapor is present in the air compared with the maximum amount the air can hold at a particular temperature. It is normally expressed as a percentage.
What is the difference between constant and cyclic humidity testing?
Constant humidity testing maintains a relatively stable temperature and humidity condition for a specified period. Cyclic testing changes environmental conditions according to a defined sequence, which can be used to study the effects of repeated temperature and moisture changes.
Conclusion
A humidity chamber creates a controlled environment where temperature and moisture can be monitored and adjusted around a sample. Humidity Chamber Basics involve understanding relative humidity, temperature control, sensors, air circulation, and environmental exposure methods. Recent developments in environmental testing have placed continued attention on measurement accuracy, chamber performance, dynamic conditions, and updated testing procedures. These systems therefore play an important role in studying how materials, components, and products respond to controlled environmental conditions.
