An industrial glycol chiller is a cooling system that uses a water-based glycol solution to transfer heat away from equipment, materials, or industrial processes.

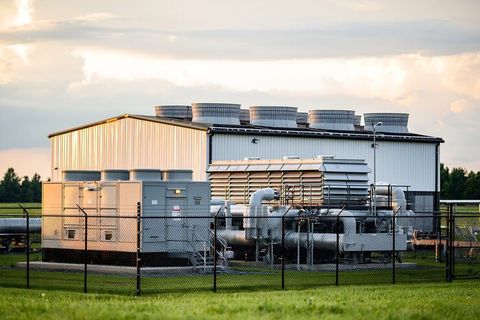

Industrial glycol chiller insights into temperature control and efficiency help explain how these systems maintain stable operating conditions in environments where ordinary water-based cooling may not provide sufficient protection against freezing.
Glycol chillers are commonly used in food and beverage production, pharmaceutical manufacturing, chemical processing, plastics production, and commercial refrigeration. They circulate a cooled liquid through pipes or heat exchangers to absorb heat from the process. The warmed liquid then returns to the chiller, where it releases heat before circulating again.
The two commonly used glycol types are ethylene glycol and propylene glycol. Ethylene glycol provides useful heat-transfer properties but is toxic if swallowed. Propylene glycol generally has lower acute toxicity and may be selected for applications with particular contamination concerns, although the specific formulation and applicable regulations still matter.
How an Industrial Glycol Chiller Works
A glycol chiller operates through a repeating refrigeration and liquid-circulation process. A refrigeration circuit removes heat from the glycol solution, while a pump moves the cooled liquid to the equipment or process that needs temperature control.
The main operating stages include:
Heat absorption: The glycol solution absorbs heat from the process through a heat exchanger or cooling coil.
Liquid circulation: A pump transports the warmed solution back to the chiller.
Refrigeration: An evaporator transfers heat from the glycol solution into the refrigerant circulating inside the refrigeration circuit.
Heat rejection: A condenser releases the collected heat into the surrounding air or a separate cooling-water system.
Temperature regulation: Sensors and controls monitor the liquid temperature and adjust cooling operation according to demand.
This arrangement separates the refrigeration equipment from the process being cooled. It also allows the same central chiller to supply cooling to several connected production areas when the system has been designed for that purpose.
Main Components and Their Functions
The major components work together to maintain circulation and remove heat.
The compressor raises the refrigerant's pressure, enabling heat transfer through the refrigeration cycle. The evaporator absorbs heat from the glycol solution, while the condenser releases that heat into the environment. An expansion device reduces refrigerant pressure before it returns to the evaporator.
The glycol circuit includes a circulation pump, pipes, a reservoir or expansion tank where required, and temperature sensors. A control panel coordinates compressor operation, pump functions, temperature settings, and protective shutdowns.
Importance
Industrial glycol chillers help maintain controlled temperatures in processes where overheating or temperature variation can affect production, equipment operation, or product characteristics. In food processing, cooling may be needed during mixing, storage, or fermentation. In plastics manufacturing, chilled liquid can help remove heat from moulds and production equipment.
These systems are also relevant to chemical processing, laboratories, and industrial facilities that operate equipment within defined temperature ranges. Stable cooling can help reduce unwanted process variation, while appropriate system design supports consistent heat removal under changing operating conditions.
Temperature Control and System Stability
Temperature control depends on more than the chiller's cooling capacity. The temperature difference between the glycol supply and return, liquid flow rate, heat load, and control settings all influence the system's response.
If the glycol flow is too low, some equipment may not receive enough cooling. If the system is oversized or its controls are poorly adjusted, it may cycle frequently or operate inefficiently. Sensors placed at suitable locations help operators distinguish between the chiller's outlet temperature and the actual temperature experienced by the process.
Glycol Concentration and Heat Transfer
Glycol is mixed with water to create a solution with a suitable freezing point. Increasing the glycol concentration generally lowers the freezing point, but it also increases viscosity and can reduce heat-transfer performance compared with water under similar conditions.
The correct mixture therefore depends on the lowest expected operating temperature, the equipment manufacturer's specifications, and the required degree of freeze protection. Excessive glycol concentration may increase pumping energy and reduce cooling capacity, while insufficient concentration may leave the system vulnerable to freezing.
Factors Affecting Efficiency
Several operating factors influence the energy performance of an industrial glycol chiller:
Operating temperature: Lower required liquid temperatures generally increase the refrigeration system's workload.
Condenser conditions: High outdoor temperatures or inadequate heat rejection can increase compressor energy use.
Glycol concentration: Higher concentrations can increase pumping resistance and affect heat transfer.
Flow rate: Inadequate or excessive flow can reduce overall system performance.
Insulation: Poorly insulated pipes allow unwanted heat to enter the circulating liquid.
Maintenance condition: Dirty heat-transfer surfaces, blocked filters, and refrigerant-system problems can affect operation.
Control strategy: Appropriate compressor staging and pump control can help match output to changing demand.
Common Performance Measurements
| Measurement | What it indicates | Why it matters |
|---|---|---|
| Supply temperature | Temperature of glycol leaving the chiller | Shows the cooling level delivered to the process |
| Return temperature | Temperature of glycol returning from the process | Helps assess heat absorbed by the liquid |
| Flow rate | Volume of glycol circulated over time | Influences heat-transfer capacity |
| Cooling capacity | Rate at which heat is removed | Indicates the system's ability to meet process demand |
| Power consumption | Electricity used by the chiller and supporting equipment | Helps evaluate energy performance |
| Glycol concentration | Proportion of glycol in the solution | Indicates freeze protection and influences fluid properties |
These measurements are most useful when reviewed together. For example, a large difference between supply and return temperatures may indicate substantial heat absorption, but it does not by itself prove that the system is operating efficiently.
Recent Updates
Developments in industrial glycol chiller technology during 2024–2026 have continued to emphasize energy monitoring, variable-speed equipment, improved controls, and refrigerants with lower environmental impact. The practical availability and suitability of these features vary by system design and local regulations.
Smart Controls and Variable-Speed Operation
Modern chiller controls can use temperature sensors, pressure measurements, and operating data to adjust cooling output to current demand. Variable-speed compressors and pumps can reduce unnecessary energy use when a system operates under partial load, provided the equipment and control strategy are appropriately matched.
Remote monitoring can also help operators identify unusual temperature changes, excessive running time, and equipment alarms. Digital monitoring supports operational decisions but does not replace correct installation, inspection, or physical maintenance.
Refrigerants and Environmental Considerations
Industrial refrigeration systems are increasingly assessed for refrigerant performance, energy consumption, and environmental impact. Some newer designs use refrigerants with lower global warming potential, depending on the equipment category, safety requirements, and applicable regulations.
Refrigerant selection involves considerations such as flammability, toxicity, pressure, and compatibility with system components. Changes in refrigerant requirements vary across jurisdictions, so existing equipment and newly installed systems may be subject to different rules.
Heat Recovery and Integrated Cooling
Some industrial facilities recover heat rejected by chillers for use in water heating or other processes. The feasibility depends on the temperature of the recovered heat, the timing of heating demand, and the configuration of the refrigeration system.
Integrated monitoring of chillers, pumps, cooling towers, and process equipment can also provide a clearer picture of total energy consumption. Evaluating the entire cooling system helps identify losses that may not be apparent from the chiller's performance alone.
Tools and Resources
Several tools help users understand industrial glycol chiller operation and evaluate temperature-control requirements.
Temperature and Cooling Calculators
Cooling-load calculators estimate the heat that must be removed from a process. Calculations generally require information about the material being cooled, its mass, the temperature change, and the available cooling time.
For liquid systems, an approximate heat-transfer relationship is:
Heat transferred = Mass flow rate × Specific heat capacity × Temperature change
The equation helps explain how liquid flow and temperature differences relate to heat removal. Accurate engineering calculations must also consider fluid properties, system losses, operating conditions, and unit consistency.
Technical References and Monitoring Tools
Useful resources include:
U.S. Department of Energy: Industrial energy-efficiency guidance and information about cooling systems.
ASHRAE: Technical publications concerning refrigeration, heat transfer, and temperature control.
Manufacturer documentation: Equipment specifications, glycol concentration guidance, operating limits, and maintenance instructions.
Temperature and flow instruments: Sensors and meters that measure supply temperature, return temperature, and liquid circulation.
Energy monitoring software: Platforms that record electricity consumption, operating hours, alarms, and temperature trends.
These resources provide general technical information. System-specific operating decisions depend on equipment requirements, the process being cooled, and applicable safety procedures.
FAQs
What is an industrial glycol chiller used for?
An industrial glycol chiller removes heat from equipment and processes by circulating a cooled glycol solution. Common applications include food production, chemical processing, plastics manufacturing, and industrial refrigeration.
How does a glycol chiller control temperature?
Temperature sensors monitor the circulating liquid, and a control system adjusts refrigeration output to maintain the selected temperature range. Pump flow, heat load, and sensor placement also influence the temperature experienced by the process.
What glycol concentration is suitable for an industrial chiller?
The required concentration depends on the lowest expected temperature, the glycol type, and the equipment specifications. Higher concentrations generally provide greater freeze protection but can increase viscosity and pumping requirements.
Does glycol affect industrial chiller efficiency?
Yes. Glycol concentration affects fluid viscosity, heat transfer, and pumping energy. The overall effect depends on the mixture, operating temperature, flow rate, and chiller design.
How can industrial glycol chiller energy use be evaluated?
Energy use can be assessed by comparing electricity consumption with cooling output over a defined period. Supply and return temperatures, flow rate, operating hours, and ambient conditions help explain changes in performance.
Conclusion
Industrial glycol chillers use a refrigeration circuit and circulating glycol solution to remove heat and maintain controlled process temperatures. Their performance depends on cooling demand, fluid concentration, circulation, heat rejection, insulation, and control settings. Recent developments in digital monitoring, variable-speed equipment, and refrigerant selection continue to influence industrial cooling systems. Understanding these factors provides a foundation for interpreting temperature stability, energy consumption, and overall chiller operation.
